JSA Victory Plus Diesel 3 Wheeler

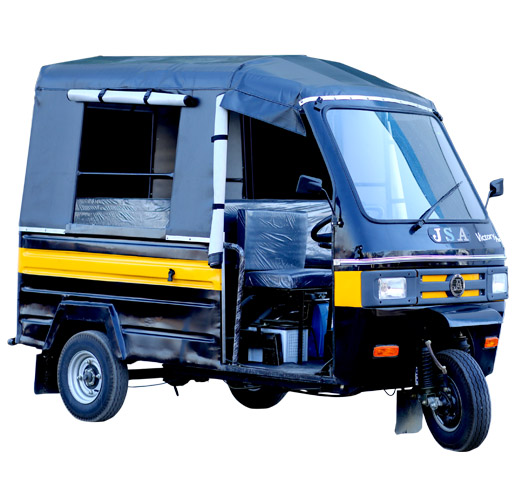

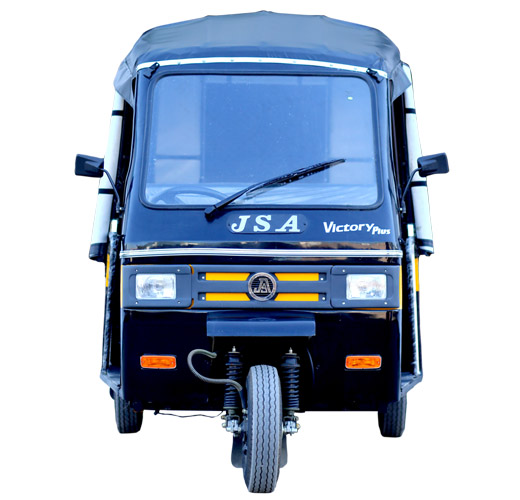

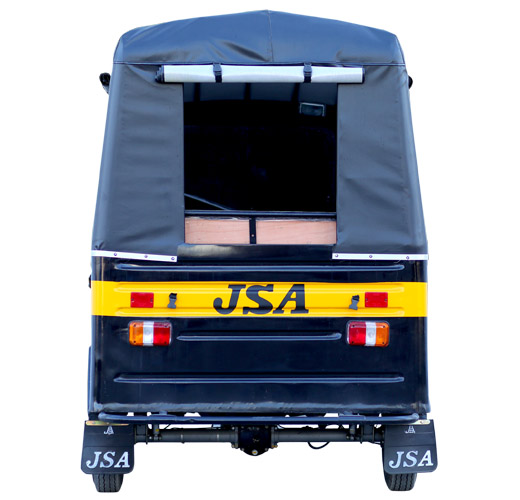

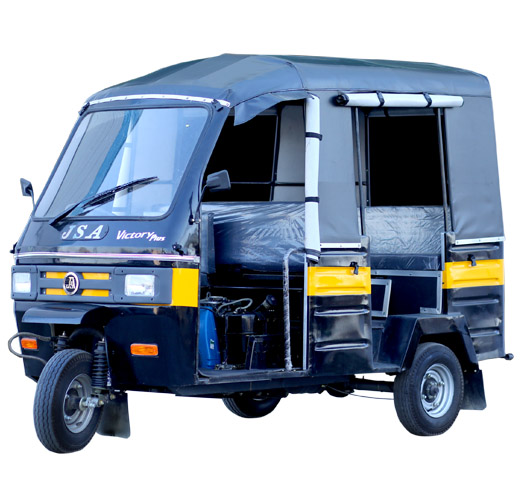

Victory 1000 D-IV Passenger Carrier
Victory 1000 D-IV Passenger Carrier Victory 1000 D-IV Passenger Carrier Victory 1000 D-IV Passenger Carrier Victory 1000 D-IV Passenger Carrier

Product Enquiry

Enquire us about anything related to this product. We'll do our best to get back to you as soon as possible.

Max. Characters:
72/1000
Fields marked with * are mandatory.
send request

Have a smooth and safe travel experience with our fuel-efficient rickshaws. Built with the best quality raw materials, it is very easy to use making it safe for both the driver and the passenger. It is economically low cost in nature and can easily seat 3+1 passengers at a time!

Technical Specifications
TSF Victory Plus Dsl Pass
Emission Standards BS-VI
Seating Capacity 3+1
Brakes Drum
Suspension Front: Coil Spring; Rear: Leaf Spring
Driving Mode Offset Steering  |  Also available in: Centre Handlebar
Battery Lead Acid 12 V
Starting System Electric Push Button
Fuel Used Diesel
Average 25 Kmpl
Fuel Tank Capacity 10.25 Ltr.
Engine Type e-Di 599 WD
Bore 91.3
Stroke 91.3
Cubic Capacity 597.7
Max Output 7.0 Kw
Max RPM 3850 RPM
Max Speed 52 Kmph
Gear Box Constant Mesh
Clutch Wet Multiplate
Kerb Weight Offset Steering: 481 Kg  |  Handlebar: 479 Kg
Gross Vehicle Weight Offset Steering: 781 Kg  |  Handlebar: 779 Kg
Min. Ground Clearness 135 mm
Wheel base Offset Steering: 2010 mm  |  Handlebar: 2030 mm
Rear Wheel Track 1250 mm
Overall Length Offset Steering: 2855 mm  |  Handlebar: 2935 mm
Overall Width Offset Steering: 1430 mm  |  Handlebar: 1425 mm
Overall Height Offset Steering: 1900 mm  |  Handlebar: 1885 mm
